PRODUCTS

Brands Page

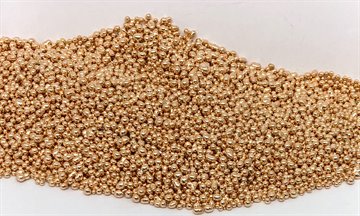

AlphaRoyal3048


General Information
Category Gold
Caratage 8-14K
Color Red
Color Shade Red
Typology Alloys For Gold
Production Process İnvestment Casting
Density [cm3] 13
Solidus [°C] 835
Liquidus [°C] 890
As cast hardness [HV] 167
Ingredient
  • Ag
  • Cu
  • Zn
  • Ni
  • Deoxidant
  • Grain Refiner
  • Other
Typical Applications
General Characteristics
As Cast Grain Size [µm] 700
Color Coordinates
L* 84
a* 7,1
b* 15,3
c* 16,9
Mechanical Caracteristics
Tensile Strength (Rm) [MPa] 500
Yields strength (Rp0.2) [MPa] 280
Elongation Rupture (A) [%] 35
As cast Hardness [HV] 167
Hardness after 70% area red. [HV] 300
Hardness after annealing [HV] 170
Hardness after age-hardening [HV] 180
Casting Processing Parameters
Pre-mixing temperature [°C] 1040
Casting Temperatures Metal [°C] Flask [°C]
Thin (below 0.5 mm ) 1010 - 1040 660 - 720
Medium ( from 0.5-1.2 mm) 990 - 1010 600 - 660
Thick (Thick 1.2 mm) 970 - 990 540 - 600
After casting, cooling time for the flaks is 15 m
After casting, cooling time for the flaks is 45 m
Sulphuric acid (%10) - 5 min - 50°C
Age Hardening Processing Parameters
Single step age-hardening treatment Temperature [°C] Time [min] Quenching Age-hardening
Age-hardening 300 100 Cooling in furnuce
12 product in your basket.see product
  • Selected Products
Compare

Copyright © Alpha Plus

Web Tasarım
